QM1200
Descripción

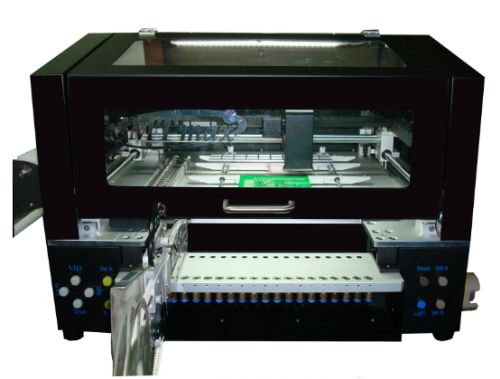

Máquina Pick & Place modelo QM1200 de la marca SMTma.
Características
PCB Size: 14.5" X 16.0"Visual System: Up and Down looking cameras Visual function: Mark point positioning calibration Head Number: 2 Auto advanced feeders: 20 QM feeders: 20 IC Tray: 2, (plus Loose Part tray) Pick and Place Capability: 5000PCS/h w/o using up-looking camera Pick and Place Accuracy: ±0.25mm Applicable Components: 0402~24mm,SOP.QFN,QFP144,BGA (Tape Width: 8mm,12mm,16mm,24mm) Overall Dimension: 16”X27”X19” Weight: 139lbs( 198lbs w/package) Vacuum Pump: -92KPA (Included, Mute Pump) Vacuum Pump Quantity: 2(Included, Mute Pump) Power Supply: 110V or 220V , 60/50 Hz Power required: 100 W
